1. 280kW dry oil-free screw compressor, fixed speed & VSD PM options. 2. 100% oil-free clean air, energy-saving and eco-friendly. 3. High-efficiency two-stage compression for lower power consumption. 4. Easy maintenance and low operating noise.

Send Inquiry

Product Description

100% Oil-Free Compressed Air

Suitable for medical, pharmaceutical, precision electronics, and food and beverage industries with strict air quality and production process requirements.

Advanced Air-End

Name brand air-end research & development experience.
High technology content air-end, achieving an average of 8-10% energy saving.
Owned design gearbox offering high reliability & durability.

High Efficiency & Energy Saving

High efficiency & energy saving intake valve to maintain lower unloading pressure and avoid large energy consumption.
New oil tank design offering lower pressure drop and less energy consumption.
Shortest piping system engineered to reduce pressure drop.
Oversized air/oil separator to bring down pressure drop.
Optimized cooler design featuring fewer elbows.

Reliability & Safety

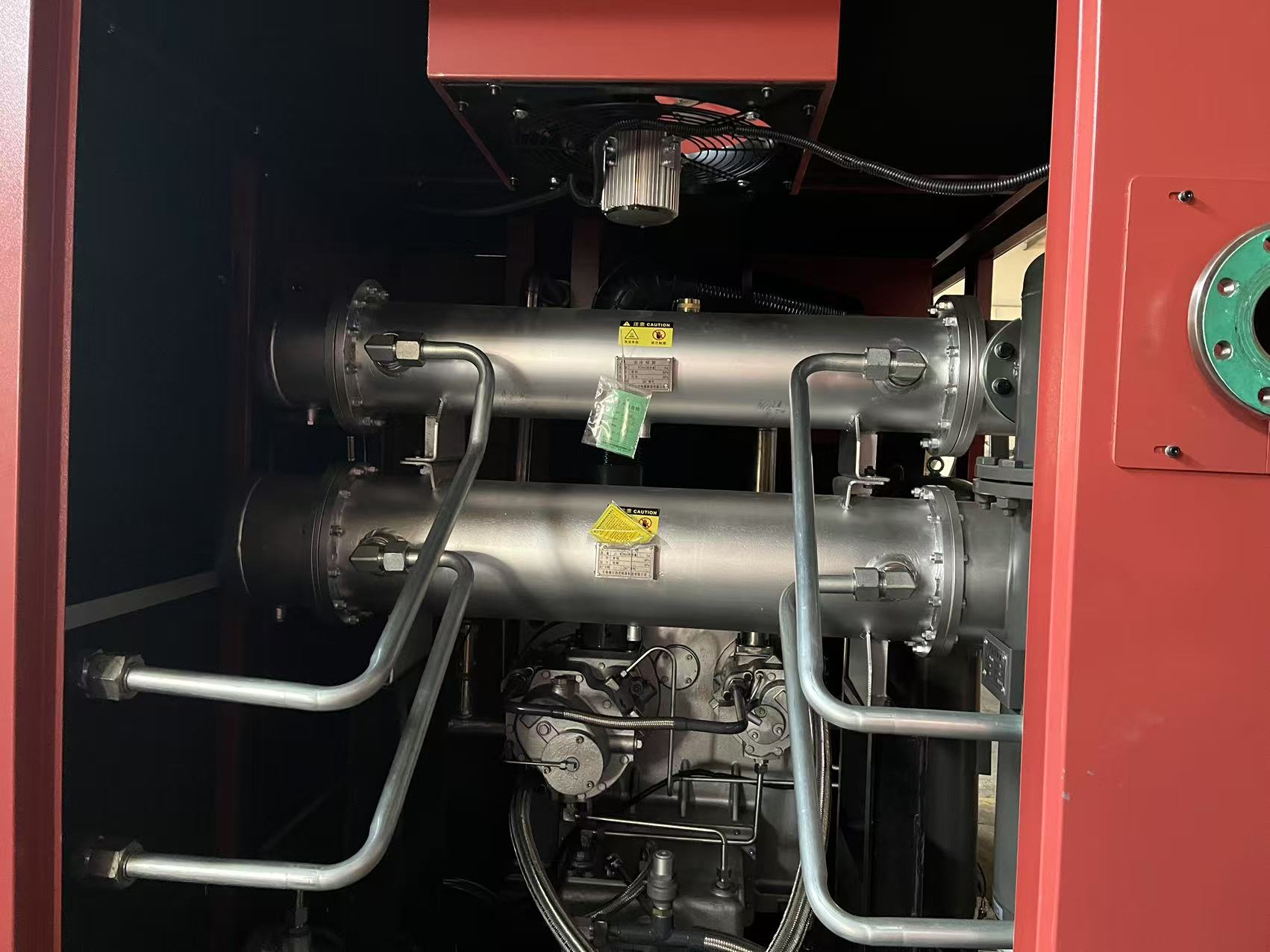

Reliability-engineered bigger cooler for lower operating temperature.
Highly safe and reliable filter system.
Integrated fan designed for stable and high-efficiency ventilation.
Reinforced cabinet for strong physical protection and safety.

Low Noise & Low Vibration

Air-end developed specifically for low noise & minimal vibration.
Motor equipped with noise reduction baffle.
The whole machine adopts low speed, high wind fan and large plate cooler to reduce air convection friction, providing a comfortable and quiet environment.

Easy Installation & Operation

Compressor is filled with lubrication oil before shipping. Ready to operate immediately after power connection.
User-friendly design; common maintenance can be fulfilled simply by opening the cabinet door.
Cooler and fan designed for easy cleaning accessibility.

Smart Controller & Branded PLC

Interactive high-definition touch screen.
PLC intelligent control system (Origin from France) to protect compressor running.
Integrated remind & record function displays real-time operational status clearly.
Supports customizable language versions for global convenience.

Technical Specifications

Model		EOF-55W	EOF-75W	EOF-90W	EOF-110W	EOF-132W	EOF-145W	EOF-160W	EOF-200W	EOF-250W	EOF-315W
Free Air Delivery / Discharge Pressure (m³/min / MPa)		8.8 / 0.75	11.9 / 0.75	14.3 / 0.75	19.1 / 0.75	21.9 / 0.75	23.5 / 0.75	28.3 / 0.75	36.1 / 0.75	43.1 / 0.75	46.4 / 0.75
		7.9 / 0.85	11.2 / 0.85	13.5 / 0.85	17.1 / 0.85	19.6 / 0.85	21.7 / 0.85	26.1 / 0.85	33.1 / 0.85	41.0 / 0.85	43.0 / 0.85
		7.3 / 1.0	10.7 / 1.0	12.7 / 1.0	16.0 / 1.0	18.9 / 1.0	20.1 / 1.0	24.2 / 1.0	30.4 / 1.0	37.4 / 1.0	41.0 / 1.0
Motor	Power (kW/HP)	55 / 75	75 / 100	90 / 120	110 / 150	132 / 175	145 / 200	160 / 215	200 / 270	250 / 355	315 / 420
	Start Method	VSD Starter / Star Triangle
	Voltage (V/Hz)	380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / custom voltage options)
Drive Method		Direct Drive
Connector (Inch)		2"	2"	DN65	DN65	DN80	DN100	DN100	DN100	DN100	DN150
Dimensions	Length (mm)	2630	2630	2630	2630	3200	3200	3200	3200	3500	3500
	Width (mm)	1788	1788	1788	1788	1980	1980	1980	1980	2100	2100
	Height (mm)	1900	1900	1900	1900	2000	2000	2000	2000	2200	2200
Weight (kg)		2300	2500	2800	2980	3100	3300	3500	3800	4200	4800

Frequently Asked Questions (FAQ)

1. What makes this compressor suitable for medical and food industries?

This compressor is 100% oil-free, meeting the strict air quality and production process requirements essential for medical, pharmaceutical, precision electronics, and food & beverage applications.

2. How does the machine achieve energy savings?

It features a high-tech air-end that delivers an average of 8-10% energy savings. Additionally, it integrates a high-efficiency intake valve, a specialized low-pressure-drop oil tank, optimized cooler designs, and the shortest piping system to minimize pressure drops.

3. What features support low noise and vibration control?

The machine uses a low-speed, high-wind fan, a large plate cooler to minimize air convection friction, and a motor equipped with noise reduction baffles to ensure a quiet and comfortable operating environment.

4. Is the compressor ready to use immediately upon delivery?

Yes, the compressor is pre-filled with lubrication oil before shipping. You can operate the unit directly after completing the physical installation and powering it on.

5. Can the smart controller's interface language be customized?

Yes, the French-origin branded PLC and intelligent touchscreen control system can be customized to support different language versions depending on your requirements.

6. How is maintenance handled on this unit?

The compressor is designed with user-friendliness in mind. Routine maintenance can be done easily by opening the access cabinet doors, and the cooler and fan are highly accessible and simple to clean.
