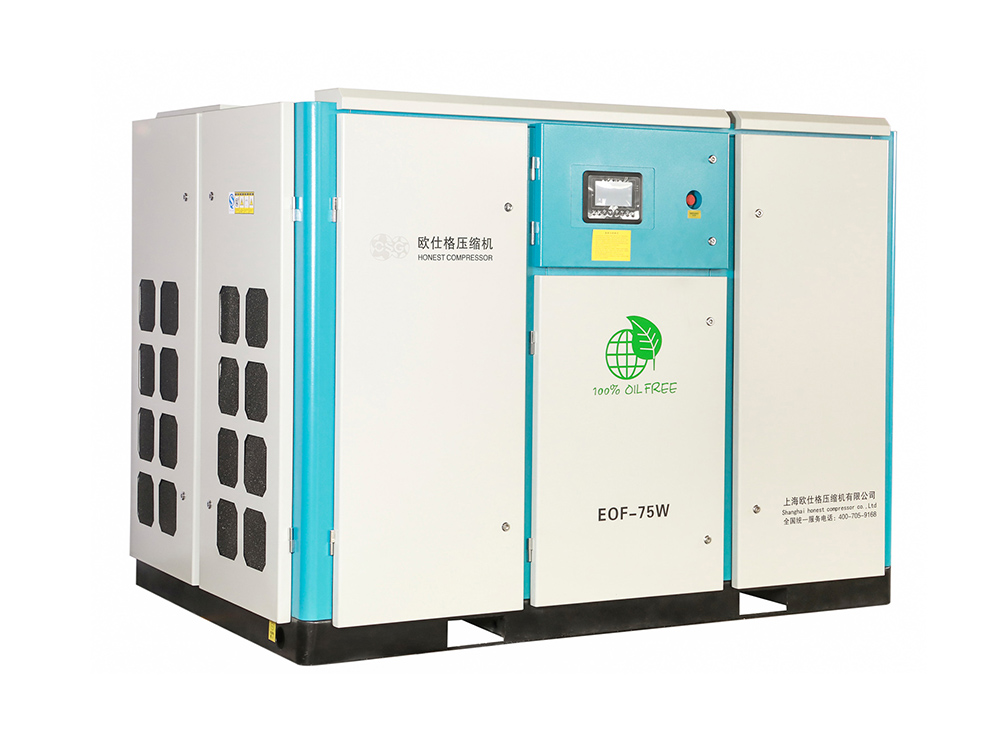

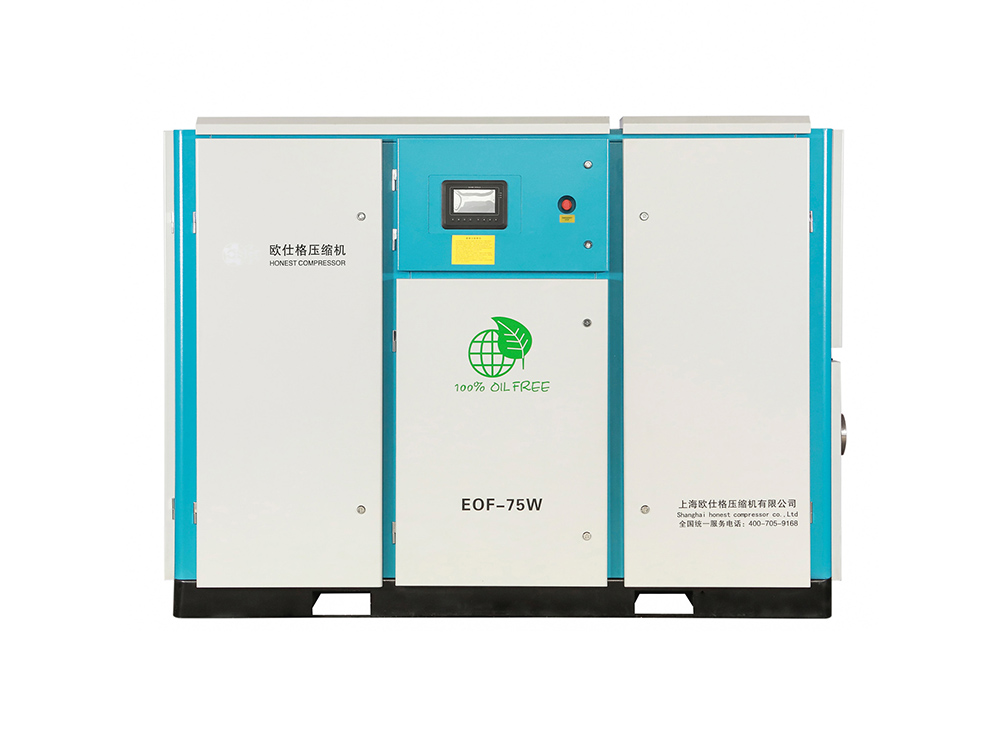

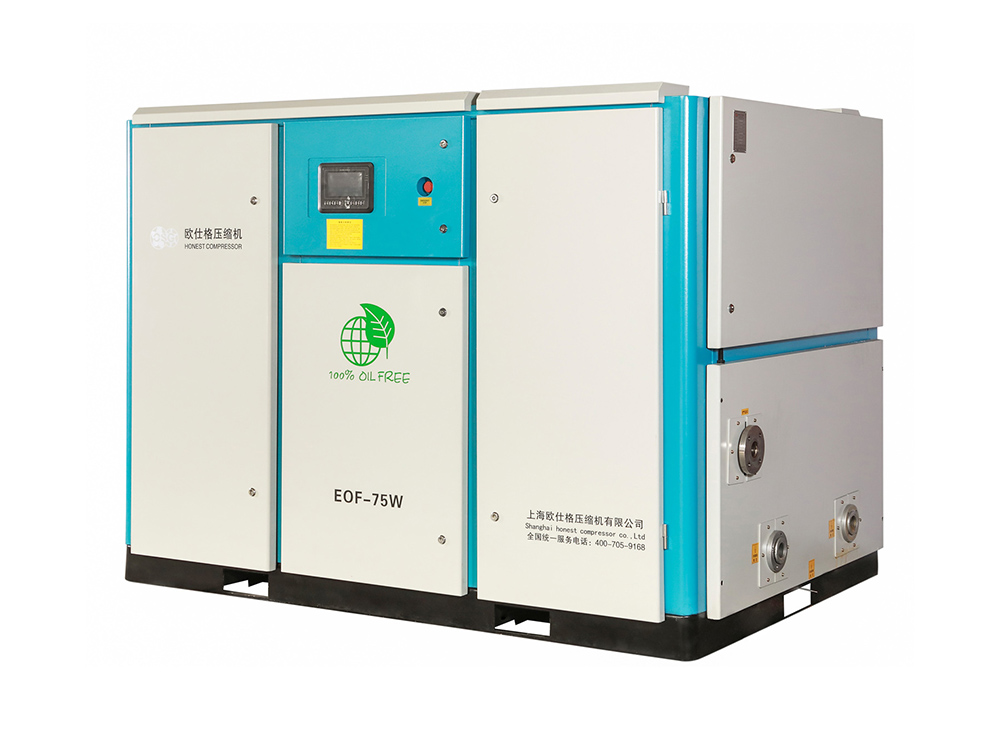

100% oil-free: suitable for medical, pharmaceutical, precision electronics and food and beverage industries with strict air quality and production process requirements.
The whole machine adopts low speed, high wind fan and large plate cooler to reduce air convection friction and provide comfortable and quiet environment.
| Model | EOF-55W | EOF-75W | EOF-90W | EOF-110W | EOF-132W | EOF-145W | EOF-160W | EOF-200W | EOF-250W | EOF-315W | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Free air delivery/Discharge air pressure (M3/min/ Mpa) | 8.8/0.75 | 11.9/0.75 | 14.3/0.75 | 19.1/0.75 | 21.9/0.75 | 23.5/0.75 | 28.3/0.75 | 36.1/0.75 | 43.1/0.75 | 46.4/0.75 | |
| 7.9/0.85 | 11.2/0.85 | 13.5/0.85 | 17.1/0.85 | 19.6/0.85 | 21.7/0.85 | 26.1/0.85 | 33.1/0.85 | 41.0/0.85 | 43.0/0.85 | ||
| 7.3/1.0 | 10.7/1.0 | 12.7/1.0 | 16.0/1.0 | 18.9/1.0 | 20.1/1.0 | 24.2/1.0 | 30.4/1.0 | 37.4/1.0 | 41.0/1.0 | ||
| - | - | - | - | - | - | - | - | - | - | ||
| Motor | Power (kw/hp) | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 | 145/200 | 160/215 | 200/270 | 250/355 | 315/420 |
| Start method | VSD Starter/star triangle | ||||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ/ 460V- 3PH- 60HZ/ 220V- 3PH-60HZ/ 400V-3PH-50HZ/ other voltages customized) | ||||||||||
| Drive method | direct drive | ||||||||||
| Connector inch | 2" | 2" | DN65 | DN65 | DN80 | DN100 | DN100 | DN100 | DN100 | DN150 | |
| Dimension | length mm | 2630 | 2630 | 2630 | 2630 | 3200 | 3200 | 3200 | 3200 | 3500 | 3500 |
| width mm | 1788 | 1788 | 1788 | 1788 | 1980 | 1980 | 1980 | 1980 | 2100 | 2100 | |
| height mm | 1900 | 1900 | 1900 | 1900 | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | |
| Weight (kg) | 2300 | 2500 | 2800 | 2980 | 3100 | 3300 | 3500 | 3800 | 4200 | 4800 | |
| All the technical parameters are for customers' reference, and the actual size and weight are based on the ex-factory machines. If there is any change without notice, please be informed! If the compressor is VSD PM type model name is EOFV- | |||||||||||
Yes, it provides 100% oil-free compressed pure air. It is specifically designed for industries with strict air quality and production process requirements, such as medical, pharmaceutical, precision electronics, and food and beverage.

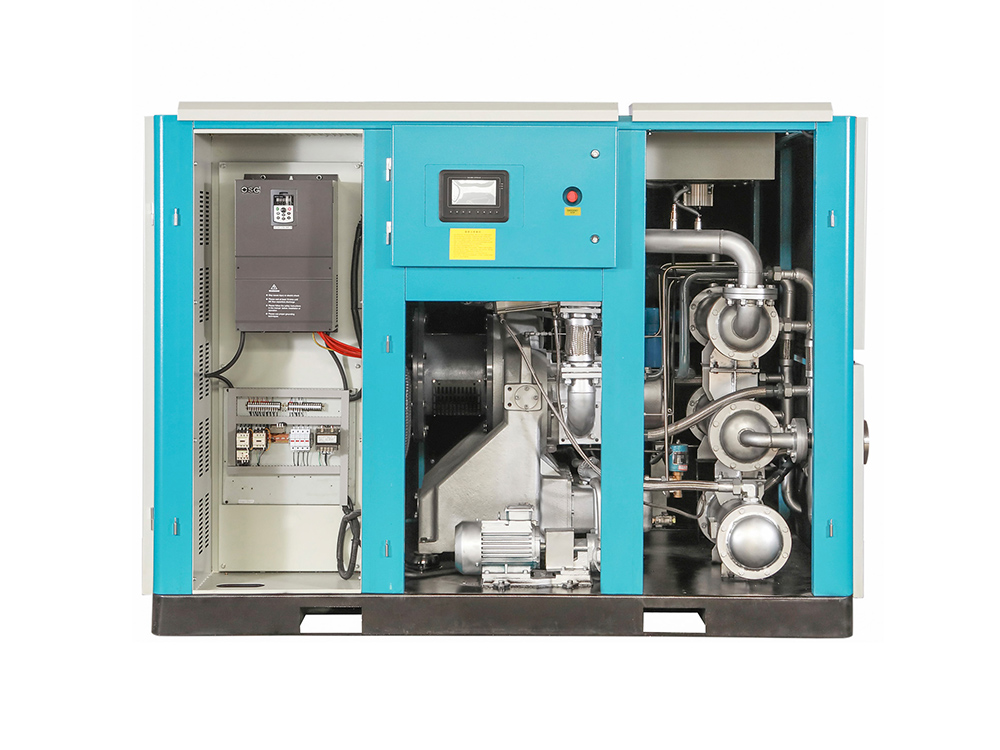

The machine uses permanent magnet frequency conversion, two-stage compression, and a high-efficiency intake valve that maintains lower unloading pressure. Its optimized system design minimizes pressure drops across the piping, air/oil separator, and cooler.

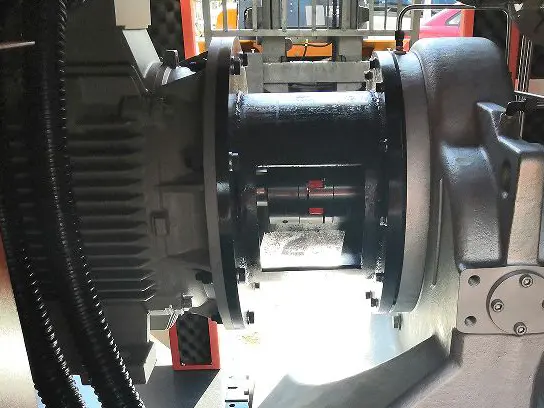

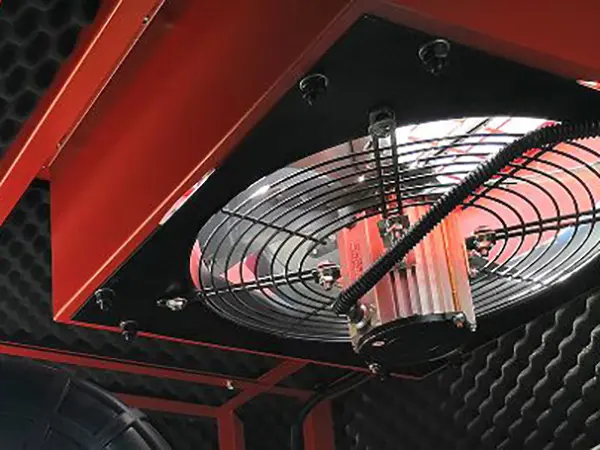

The unit utilizes a low-speed, high-wind fan, a large plate cooler, and a motor equipped with a noise reduction baffle. Additionally, a dedicated muffler device is integrated to reduce exhaust noise effectively.

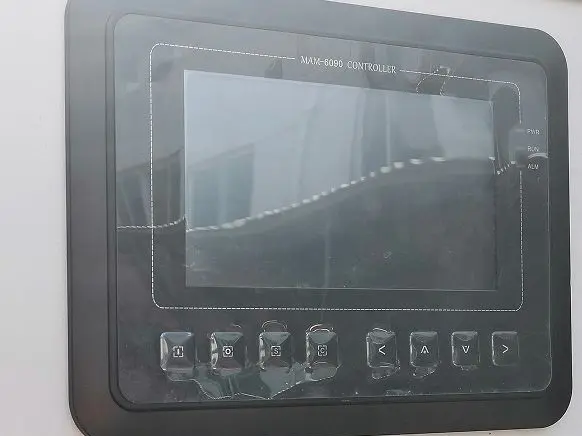

Absolutely. The compressor is pre-filled with lubrication oil before shipping, meaning it is ready for operation immediately after wiring. For maintenance, the top door flips open easily, and the cooler and fan are designed for simple cleaning.
The standard configuration is 380V 3PH 50HZ. However, we support customized options including 380V-3PH-60HZ, 460V-3PH-60HZ, 220V-3PH-60HZ, and 400V-3PH-50HZ to match your local power supply.
