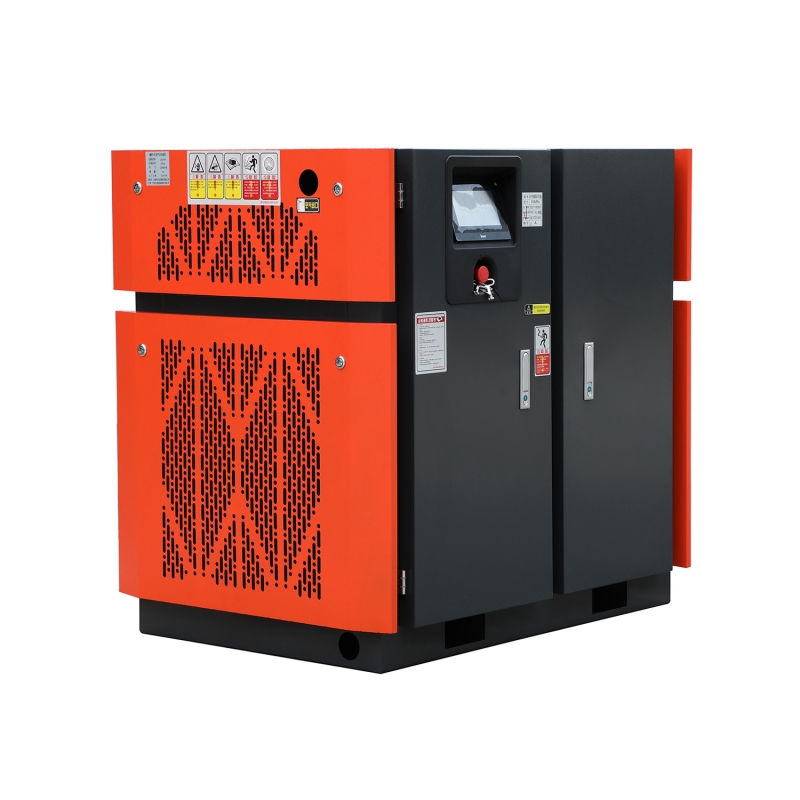

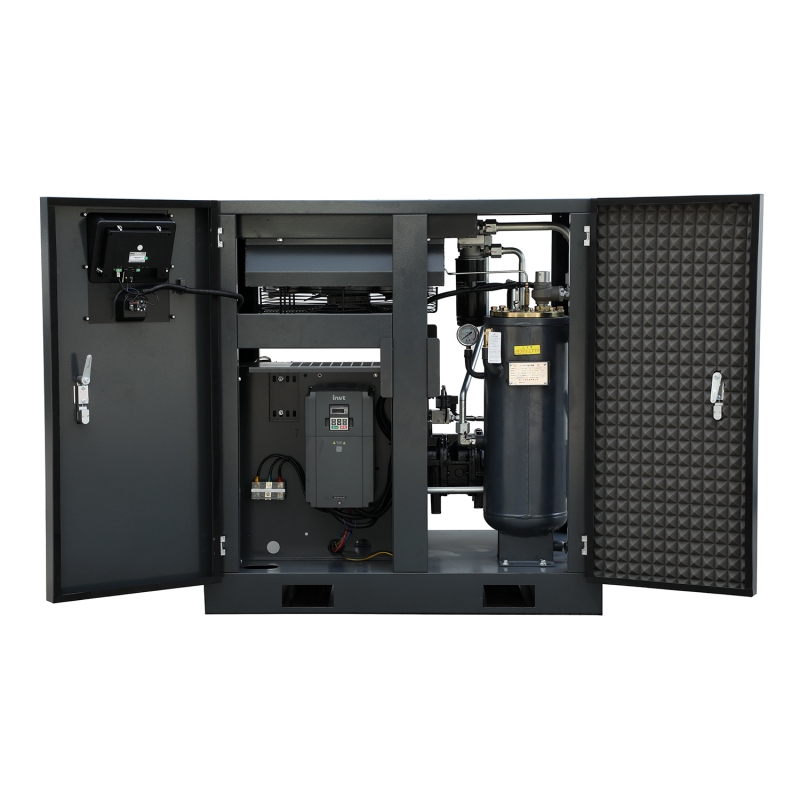

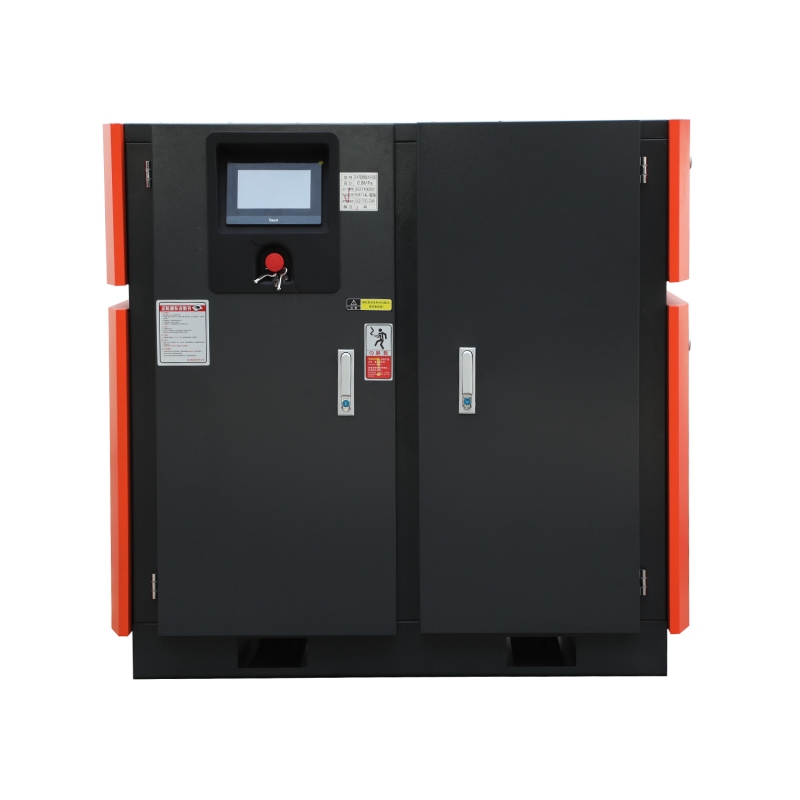

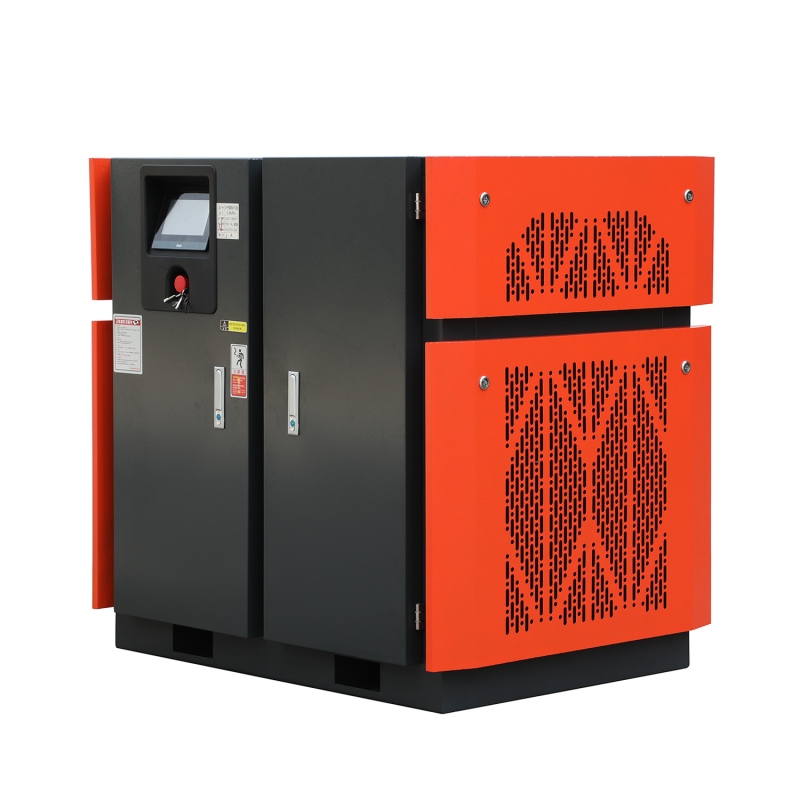

Horizontal series two-stage compression screw air compressor Horizontally connected two-stage compressor main engine, the main engine adopts equal pressure ratio design, compact structure, improved volumetric efficiency and thermal insulation efficiency, and greatly increased gas production.
Send Inquiry

Product Description

Product Pictures & Features

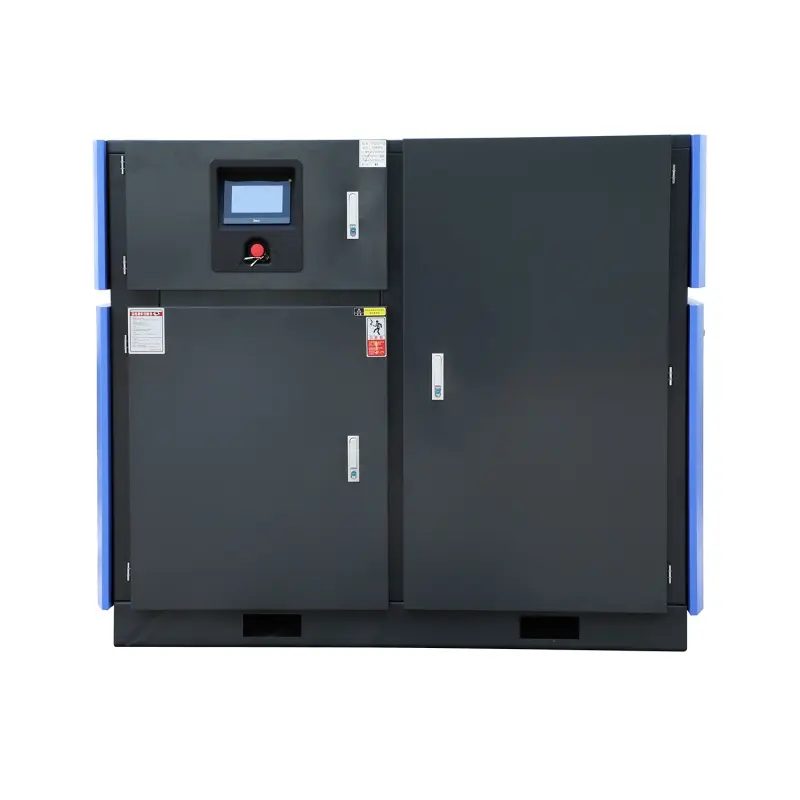

Product Image 1
Product Image 2

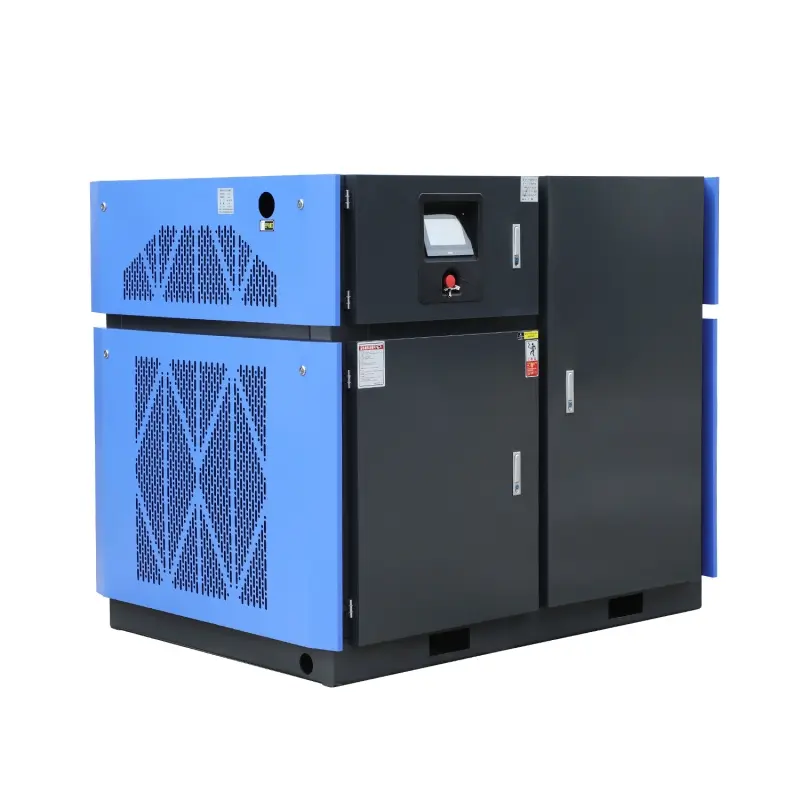

Product Image 3

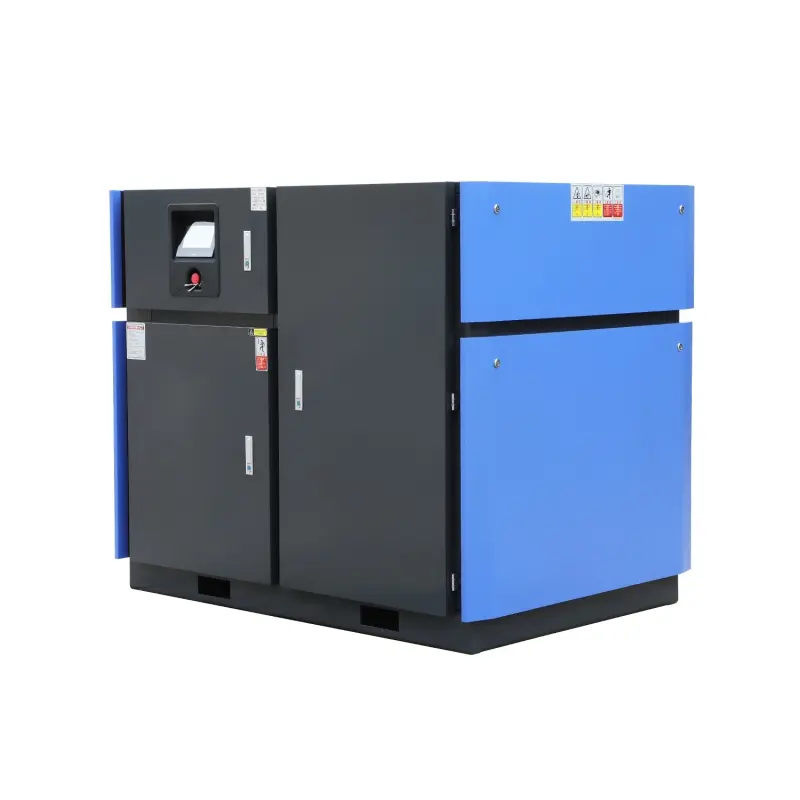

Product Image 4

Application Fields

1. Electric power industry, instrumentation, ash removal, factory miscellaneous compressed air systems, water treatment including boiler feed water treatment and industrial wastewater treatment systems, and hydropower stations will also have compressed air systems for equipment power.
2. Chemical fiber industry, cotton spinning industry; chemical fiber industry mainly uses gas for instrumentation and suction guns, printing and dyeing mainly uses gas for power and instrumentation.
3. Metallurgical industry, divided into iron and steel industry and non-ferrous metal smelting and manufacturing industry.
4. In the aerospace industry, because pneumatic devices can withstand radiation and high temperature, they can also withstand large acceleration speeds, so they are widely used in the control of modern aircraft, rockets, and missiles.
5. In the iron and steel industry, it is used as gas supply for power equipment and pneumatic tools, surface gas, surface cleaning, and non-ferrous metal smelting.
6. It is used in gas-assisted injection molding technology in the injection molding industry.
7. In the glass industry, it is used for back blowing of cloth bags or filter cartridges for dust collection equipment such as glass equipment dust collectors and self-cleaning air filters.
8. Electronics, experiments, and precision instrument industries.
9. Other industries: automobile manufacturing, ore mining, large amusement parks, etc.

Workshops

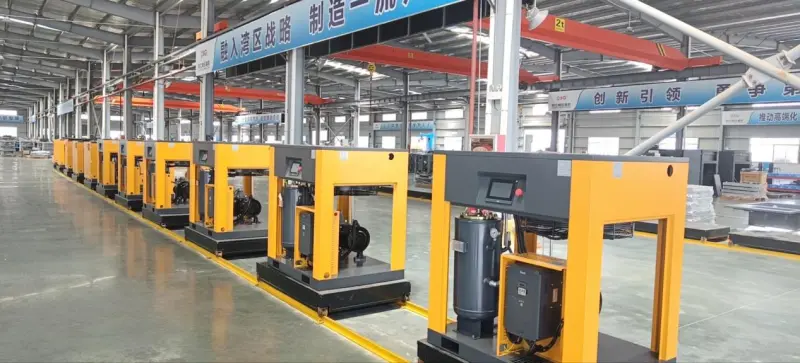

Workshop Environment

Packing and Delivery

Packing and Delivery
Model ETSVII-22A ETSVII-37A ETSVII-45A ETSVII-55A ETSVII-75A ETSVII-90A ETSVII-110A ETSVII-132A
Air Flow/Pressure
(m³/min / MPa)		 Option 1 4.1/0.7 6.9/0.7 8.9/0.7 11.2/0.7 15.1/0.7 20.0/0.7 22.0/0.7 26.0/0.7
Option 2 4.0/0.8 6.8/0.8 8.8/0.8 11.0/0.8 15.0/0.8 19.8/0.8 21.2/0.8 25.8/0.8
Option 3 3.4/1.0 6.2/1.0 7.8/1.0 9.7/1.0 12.4/1.0 17.9/1.0 19.8/1.0 23.5/1.0
Air Supply Temperature ≤ ambient temperature +8~15°C
Motor Power (kw/hp) 22/30 37/50 45/60 55/75 75/100 90/120 110/150 132/175
Start Method VSD start
Voltage (v/hz) 380V 3PH 50HZ / other voltages can be customized
Drive Method integrated air end and motor
Oil Content (PPM) ≤3
Connector Inch 1" 1 1/2" 2" 2" 2" 2 1/2" 2 1/2" 2 1/2"
Dimension Length mm 1254 1455 1754 7854 1914 2454 2454 2454
Width mm 900 1100 1200 1300 1300 1500 1500 1500
Height mm 1190 1300 1550 1550 1600 1840 1840 1840
Weight (kg) 450 580 925 970 1170 1746 1750 1790

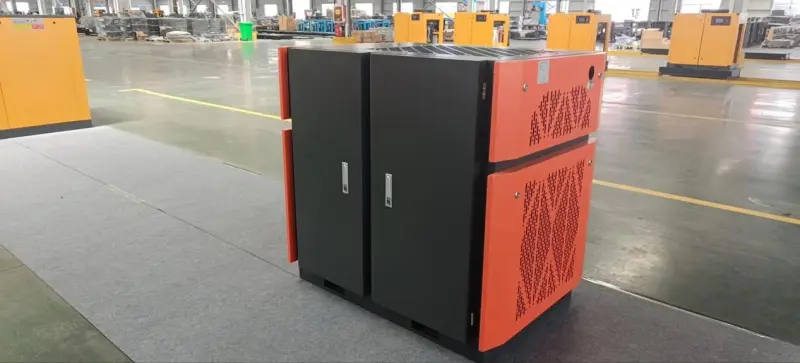

Product Parameter Diagram

Product Features Details

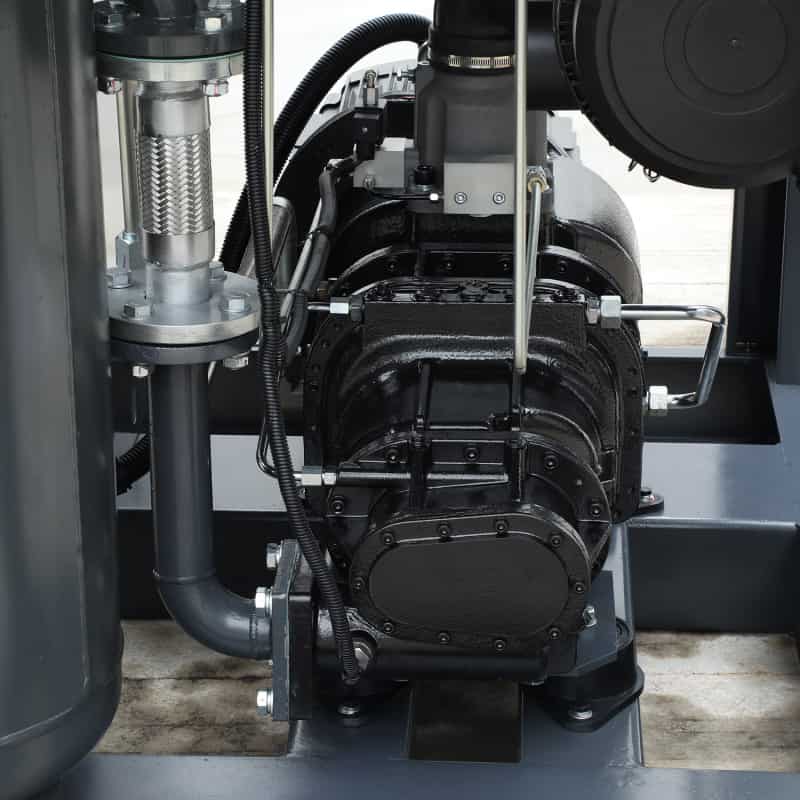

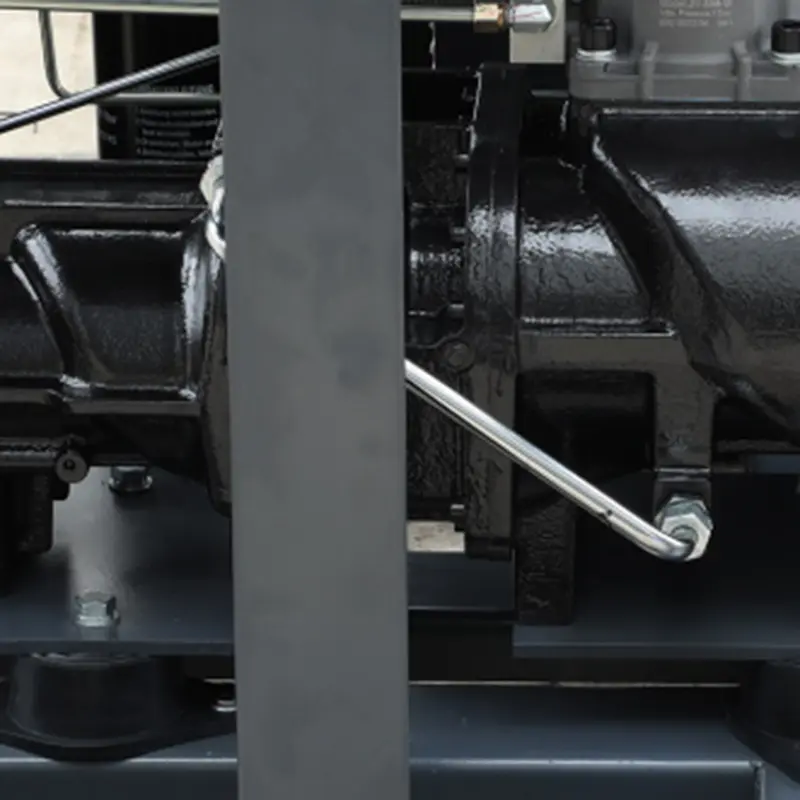

Two-Stage Compression System
The integrated main engine integrates the gas circuit and oil circuit inside, and the two-stage compression can save energy by up to 15% compared with the single-stage.
Two-stage compression system

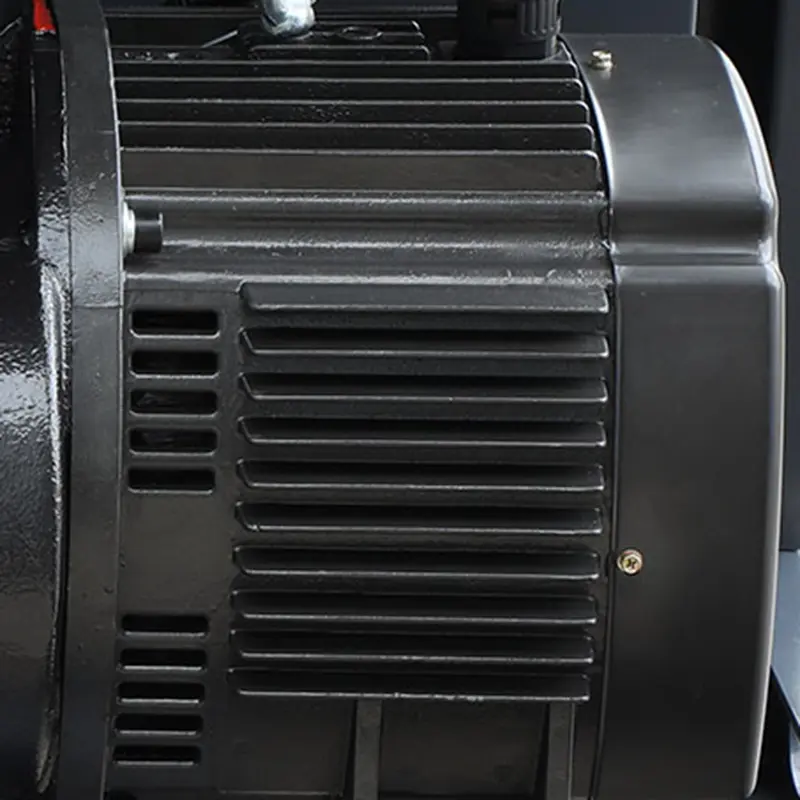

High Efficiency Permanent Magnet Motor
No no-load waste, wide range of speed regulation, compared with ordinary three-phase asynchronous motors, energy saving is about 6%-7%.
High Efficiency Permanent Magnet Motor

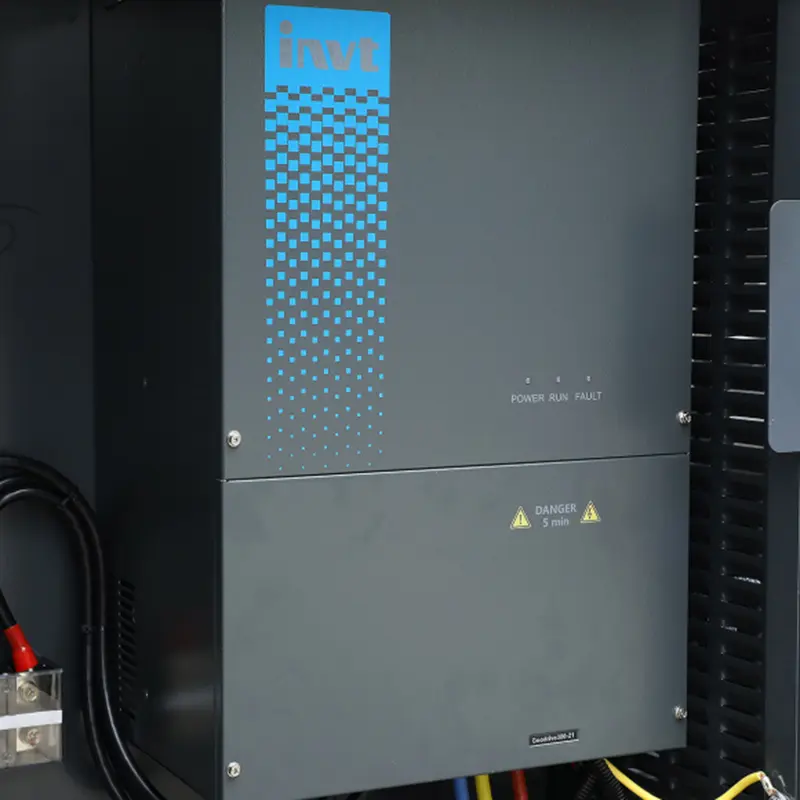

Intelligent Frequency Conversion Technology
The inverter adopts high-performance vector control to reduce mechanical loss and save about 42% energy compared with ordinary industrial frequency air compressors.
Intelligent frequency conversion technology

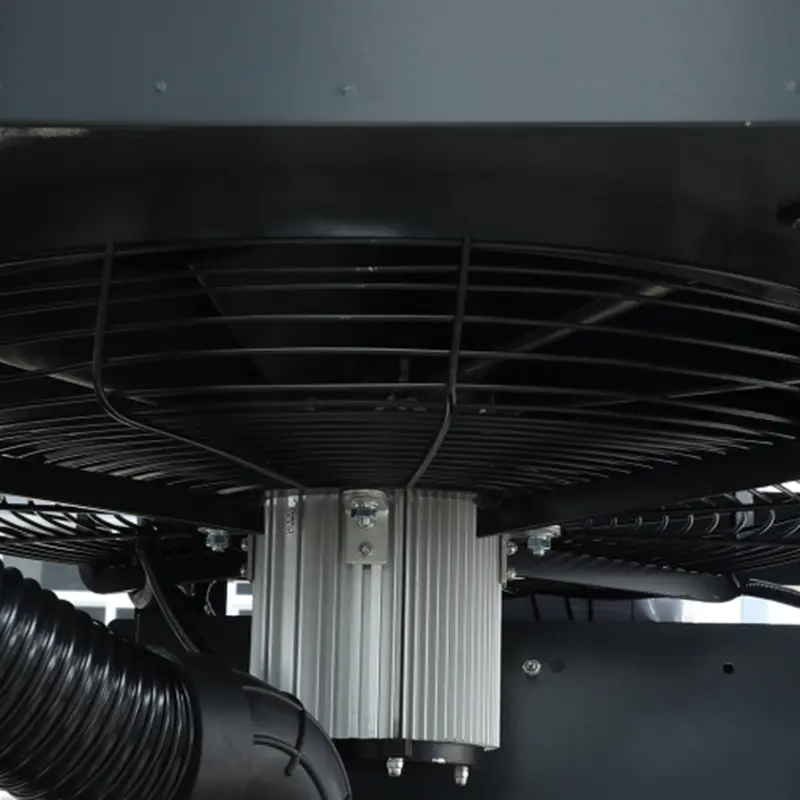

Noise Reduction Axial Flow Fan
Large-diameter low-speed axial-flow fans are used to reduce the noise and power loss.
Noise reduction axial flow fan

Air Compressor Installation Processing

Installation Processing Schema
Air Compressor ➔ Valve Air ➔ Tank ➔ Filter Air ➔ Dryer ➔ Filter ➔ Filter ➔ Filter

Frequently Asked Questions

Q: What are the main energy-saving benefits of the Two-Stage Compression system?
A: The integrated two-stage compression system optimizes the internal oil and gas channels. By compressing the air in two distinct stages, it improves thermodynamic efficiency, resulting in up to 15% energy savings compared to standard single-stage compression models.
Q: How does the Permanent Magnet Motor contribute to operational efficiency?
A: The high-efficiency permanent magnet motor prevents energy loss during periods of no-load operation. It supports a wide speed regulation range, leading to an extra 6%-7% energy savings compared to conventional three-phase asynchronous motors.
Q: Can the supply voltage and frequency be customized for different regions?
A: Yes, while the standard configuration operates on 380V, 3-Phase, 50Hz, alternative voltages and frequencies can be fully customized according to your regional industrial power specifications.
Q: What role does vector control play in the VSD frequency conversion?
A: High-performance vector control in the inverter minimizes mechanical friction losses and matches output precisely to real-time air demand. This intelligent regulation can save up to 42% energy compared to fixed-speed industrial air compressors.
Q: What is the typical oil content and temperature limit for output air?
A: The output air is highly purified, maintaining an oil content of ≤ 3 PPM. Additionally, the air supply temperature is exceptionally controlled, remaining at ≤ ambient temperature +8~15°C to protect downstream equipment.
Q: How does the cooling system maintain low noise levels?
A: The machine utilizes large-diameter, low-speed axial flow fans. This specialized configuration lowers the overall operating noise profile while decreasing power usage compared to standard high-speed cooling fans.
