AC Power 0.3mpa to 0.5mpa 3bar -5bar Low Pressure Screw Air Compressor for Industrial Electrical Working Pressure: 3 - 5bar Air Delivery: 7.0 - 60m3/min Motor Power: 30 kw to 250kw Type of Driving: Direct Driven Type of Cooling: Air Cooling/Water Cooling
Send Inquiry

Product Description

Product Specification
Model EL-30A EL-37A EXL-45A EXL-55A EXL-75A EXL-90A EXL-110A EXL-132A EXL-160A EXL-185A EXL-250A
Air Flow/Pressure (m³/min / MPa) 7/0.4 9.2/0.4 12.2/0.4 15.9/0.4 20.0/0.4 23.0/0.4 27.5/0.4 30.0/0.4 42.0/0.4 45.0/0.4 60.0/0.4
Air Supply Temperature ≤ ambient temperature +8~15°C
Motor Power (kW/HP) 30/40 37/50 45/60 55/75 75/100 90/120 110/150 132/175 160/215 185/250 250/355
Start Method Star triangle start / VSD start with model with V
Voltage (V/Hz) 380V/60HZ/3P / 440V/60HZ/3P / 220V/60HZ/3P / 380V/50HZ/3P / 410V 50HZ 3P / 415V 50HZ 3P / 230V 60HZ 3P / 480V 60HZ 3P (or other voltages can be customized)
Drive Method Direct drive
Oil Content (PPM) ≤ 3
Dimension Length (mm) 1900 1900 2100 2600 2600 2600 2600 2600 3080 3080 3600
Width (mm) 1260 1260 1260 1280 1280 1280 1280 1280 2000 2000 2000
Height (mm) 1600 1600 1600 1900 1900 1900 1900 1900 2300 2300 2300
Advantages of Low Pressure Air Compressor
  • High Efficiency: Operates under low-pressure working conditions with a higher energy efficiency ratio, effectively reducing overall energy consumption while meeting output demands.
  • Energy Saving: Designed to provide targeted lower compressed air pressure, which keeps power requirements minimal and optimizes energy usage.
  • Good Stability: Delivers superior operational stability under low-pressure states, ensuring a continuous and steady supply of compressed air for production lines.
Application Areas
Glass Industry Cotton Spinning Chemical Fiber Industry Cement Industry Food & Beverage Processing Pharmaceutical & Chemical Environmental Protection Recycling Industry Textile Industry Water Treatment Industry
Packing and delivery
Packaging and Delivery Image 1

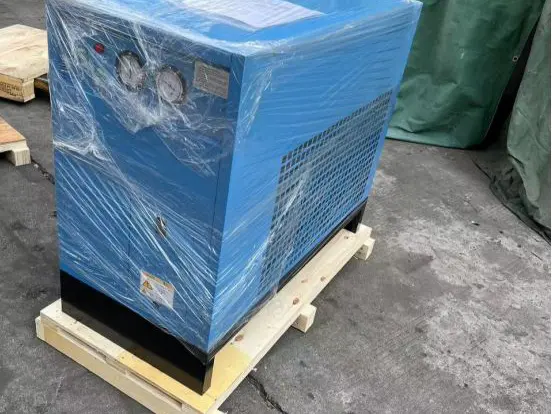

Packaging and Delivery Image 2
Frequently Asked Questions
What are the main advantages of using a low pressure air compressor?
Low pressure air compressors feature high efficiency with optimized energy consumption under low-pressure conditions, excellent energy-saving performance due to lower power consumption, and reliable operational stability for continuous production.
Which industries are these compressors suitable for?
They are widely applied across various fields including the glass, cotton spinning, chemical fiber, cement, food and beverage, pharmaceutical and chemical, textile, water treatment, and environmental protection and recycling industries.
What starting methods and driving methods do these models use?
These compressors utilize a direct drive method. Depending on the model, they use either a star triangle start or a VSD (Variable Speed Drive) start system (specifically for models with a "V" designation).
Are there customized voltage options available?
Yes. Standard voltage configurations include 380V/60HZ/3P, 440V/60HZ/3P, 220V/60HZ/3P, 380V/50HZ/3P, 410V/50HZ/3P, 415V/50HZ/3P, 230V/60HZ/3P, and 480V/60HZ/3P. Other specific voltage requirements can also be customized.
What is the air supply temperature and oil content of this equipment?
The air supply temperature remains less than or equal to the ambient temperature plus 8 to 15°C, and the discharged oil content is maintained at or below 3 PPM.
