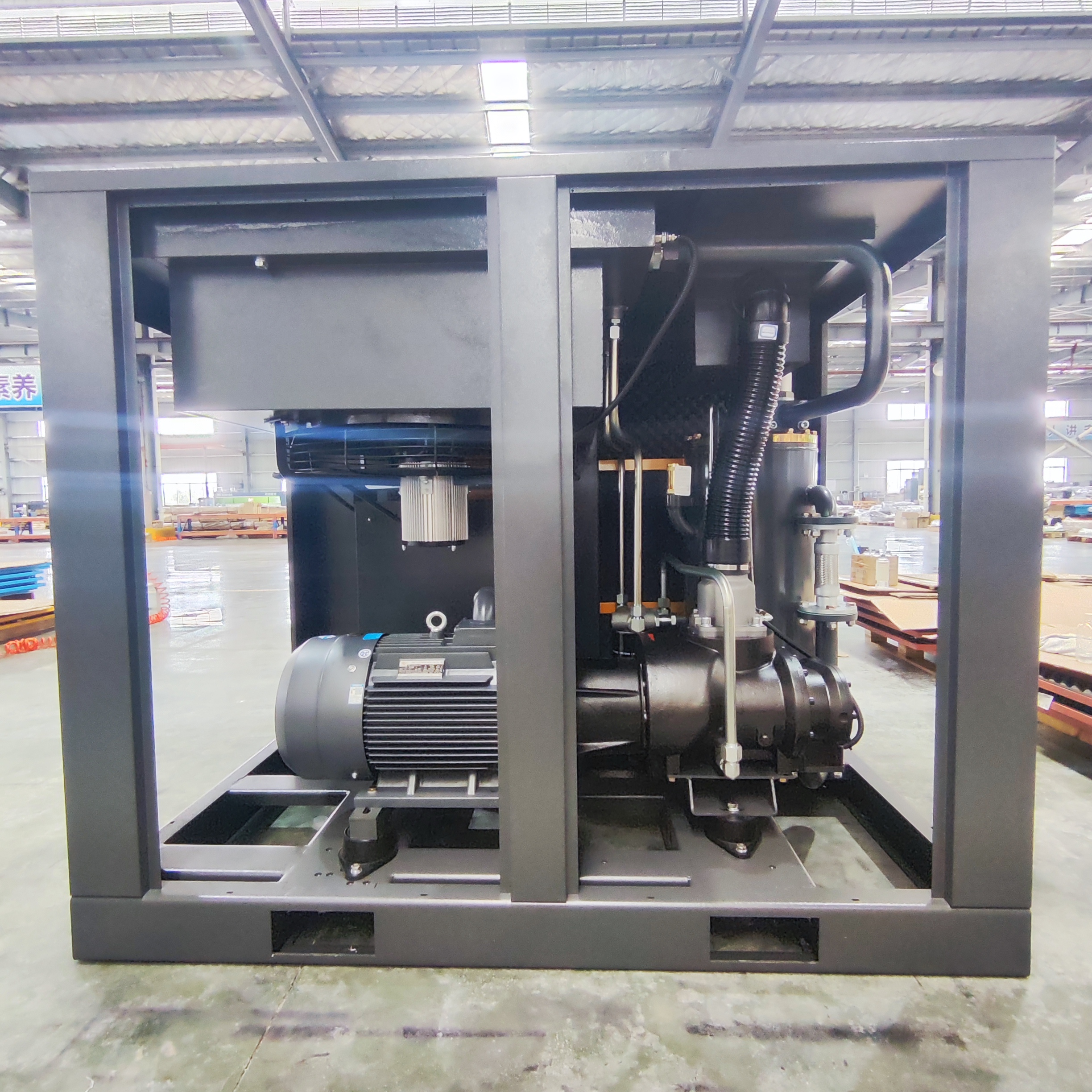

Equipped with a high-performance direct drive mechanism for maximum power transmission and reduced maintenance costs.
Star-delta start-up configuration effectively reduces starting current and protects the power supply grid.
| Model | 10A | 15A | 20A | 25A | 30A | 40A | 50A | 60A |
|---|---|---|---|---|---|---|---|---|
| Free air delivery / Discharge pressure (m³/min / MPa) | 1.2/0.7 | 1.65/0.7 | 2.5/0.7 | 3.2/0.7 | 3.8/0.7 | 5.3/0.7 | 6.8/0.7 | 7.4/0.7 |
| 1.1/0.8 | 1.5/0.8 | 2.3/0.8 | 3.0/0.8 | 3.6/0.8 | 5.0/0.8 | 6.2/0.8 | 7.0/0.8 | |
| 0.95/1.0 | 1.3/1.0 | 2.1/1.0 | 2.7/1.0 | 3.2/1.0 | 4.5/1.0 | 5.6/1.0 | 6.2/1.0 | |
| 0.8/1.25 | 1.1/1.25 | 1.9/1.25 | 2.4/1.25 | 2.7/1.25 | 4.0/1.25 | 5.0/1.25 | 5.6/1.25 | |
| Lubricating oil quantity (L) | 4 | 7.5 | 14 | 14 | 14 | 30 | 30 | 30 |
| Driving mode | Direct drive | |||||||
| Power supply | 380V/50Hz/3P or customized | |||||||
| Power (kW) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| Startup mode | Y-Δ start-up | |||||||
| Dimension (mm) | 850*670*870 | 1100*750*920 | 1250*850*1160 | 1350*1000*1190 | ||||
| Outlet diameter | G¼ | G¼ | G1 | G1 | G1 | G1¼ | G1¼ | G1¼ |
| Model | 75A | 100A | 120A | 150A | 175A | 200A | 250A | 300A | 350A |
|---|---|---|---|---|---|---|---|---|---|
| Free Air Delivery / Discharge Pressure (m³/min / MPa) | 10.0/0.7 | 13.4/0.7 | 16.2/0.7 | 21.0/0.7 | 24.5/0.7 | 28.7/0.7 | 32.0/0.7 | 36.0/0.7 | 42.0/0.7 |
| 9.6/0.8 | 12.6/0.8 | 15.0/0.8 | 19.8/0.8 | 23.2/0.8 | 27.6/0.8 | 30.4/0.8 | 34.3/0.8 | 40.5/0.8 | |
| 8.5/1.0 | 11.2/1.0 | 13.8/1.0 | 17.4/1.0 | 20.5/1.0 | 24.6/1.0 | 27.4/1.0 | 30.2/1.0 | 38.2/1.0 | |
| 7.6/1.25 | 10.0/1.25 | 12.3/1.25 | 14.8/1.25 | 17.4/1.25 | 21.5/1.25 | 24.8/1.25 | 27.7/1.25 | 34.5/1.25 | |
| Lubricating Oil Quantity (L) | 65 | 65 | 72 | 90 | 90 | 110 | 110 | 125 | 125 |
| Driving Mode | Direct drive | ||||||||
| Power (kW) | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 |
| Startup Mode | Y-Δ Start-up | ||||||||
| Dimension (mm) | 1800*1230*1570 | 1900*1230*1570 | 2300*1470*1840 | 2650*1650*2045 | 3300*2100*2190 | ||||
| Weight (kg) | 1073 | 1272 | 1327 | 1801 | 1848 | 2400 | 2600 | 3100 | 3300 |
| Outlet Diameter | G2 | G2 | G2 | G2½ | G2½ | G2½ | G2½ | DN100 | DN100 |
All models listed in our technical specifications utilize a Direct Drive mode, ensuring optimal power transmission, lower vibration, and reduced energy losses compared to belt-driven models.
Yes. While the standard power supply configuration is 380V/50Hz/3P, customized electrical configurations can be requested to meet specific regional requirements.
The Y-Δ (Star-Delta) start-up configuration reduces the initial starting current, which protects the electrical motor and prevents voltage fluctuations in your facility's power supply grid.
Free Air Delivery (FAD) varies according to the discharge pressure (ranging from 0.7 MPa to 1.25 MPa). You should match your air-operated equipment's volume requirement (m³/min) at its operating pressure to the corresponding capacity of the compressor models.
Yes, the lubricating oil capacity is scaled according to machine size and heat dissipation needs, starting from 4 Liters for the 10A model up to 125 Liters for the larger 350A industrial units.
