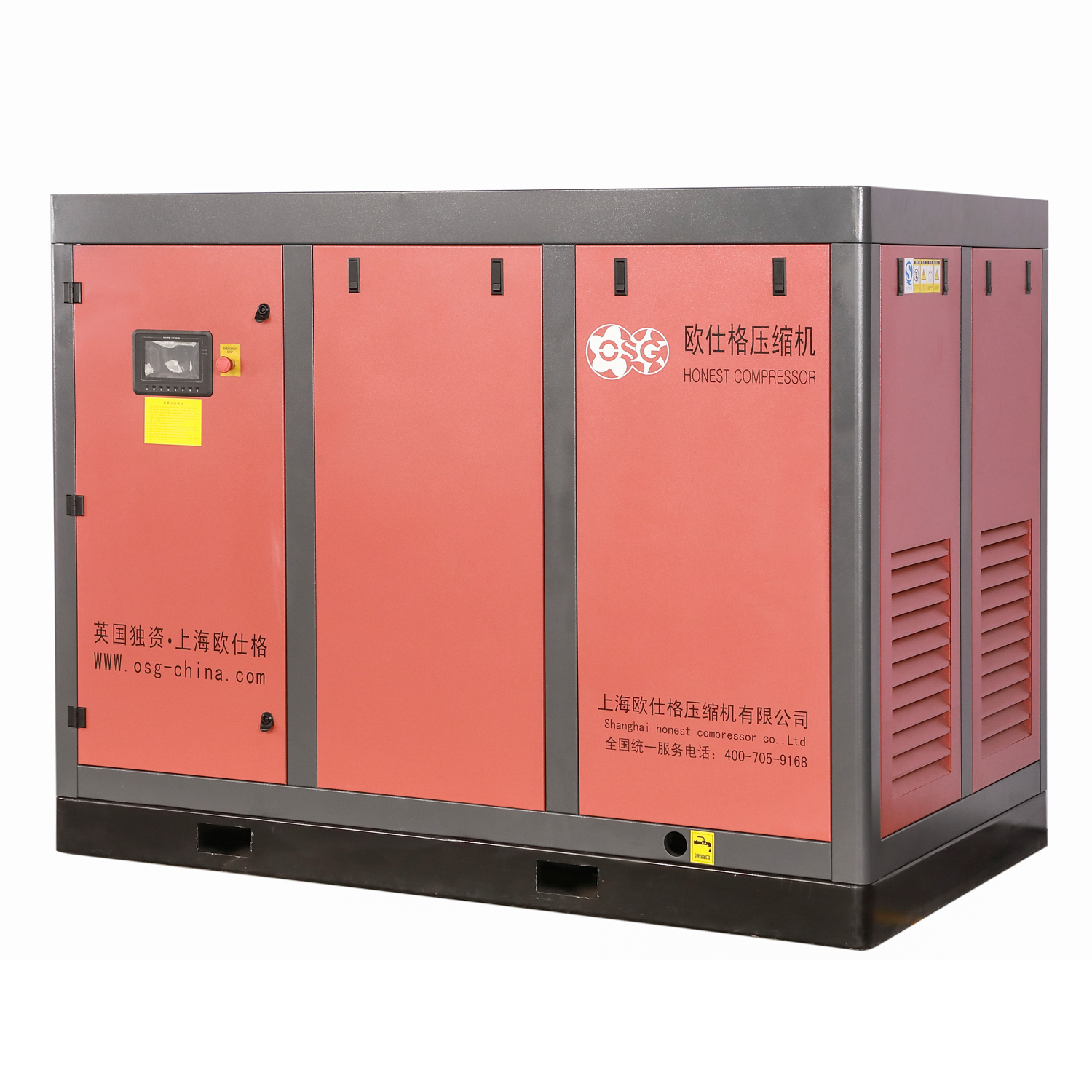

China IP55/54 55KW 75HP Factory Price Two Stage Industrial Screw Type Air Compressor Machine Suppliers, Exporters

IP55/54  55KW 75HP Factory Price Two Stage Industrial Screw Type Air Compressor Machine

SHORT DESCRIPTION:

1. No gears, no traditional faults such as couplings, no bearings for the motor, more stable operation and less noise; 2. Unique design, dual hosts, dual motors, horizontal placement, less vibration, more stable and comfortable operation; 3. Dual air ends, double frequency conversion, stepless speed change, so that the host is always running at an energy-saving speed, more energy-saving; Oil-cooled IP55 fully enclosed motor, the motor is controlled in a good state, with higher efficiency and safety.

Product Description

Model
ETSV-55A
Power Rating
55 KW / 75 HP
Working Type
Screw
Exhaust Oil
< 3 ppm
Technical Specifications
Parameters Specifications & Details
Model ETSV-55A
Power (KW) 55 KW
Horsepower (HP) 75 HP
Pressure (Bar) & Capacity (M³/min) Pressure: 7 / 8 / 10 / 13 Bar Displacement: 12.8 / 12.4 / 9.7 / 8.7 M³/min (6.2 M³/min max)
Exhaust Temperature ≤ Ambient Temperature +8°C
Intake Air Temperature No more than 45°C
Noise Level dB(A) ≤ 68 ± 2 dB(A)
Oil Content (ppm) ≤ 3 ppm
Power Supply V/ph/Hz 380V / 3 Phase / 50Hz (or customized request)
Dimensions (L × W × H) mm 2100 * 1260 * 1600 mm
Weight (kg) 1700 KGS
Diameter of Outlet 2"
Applicable Industries General Industry
Warranty 13 months from the delivery date
Working Pressure Options 7 bar, 8 bar, 10 bar, 13 bar
Machinery Test Report Video outgoing-inspection provided
Gas Type Air
Condition New
Type Screw
Power Source AC POWER
Lubrication Style Lubricated
Supported Voltages 220V / 230V / 380V / 400V / 440V / 460V / 600V or customized
After-sales Service Engineers available to service machinery overseas
Cooling Method Air Cooling / Water Cooling
Drive Method Direct Driven / Coupling
Color Red and grey / Customize options available
OEM / ODM Offered / Supplied
Insulation Grade F
Protection Grade IP54 / IP55
Exhaust Oil Content < 3ppm
Frequently Asked Questions
What are the motor power and horsepower ratings of the ETSV-55A?
The ETSV-55A screw air compressor operates with a powerful 55 KW motor, delivering equivalent to 75 HP (horsepower) of performance for industrial needs.
What cooling and drive configurations are available for this model?
This unit supports both direct-driven and coupling drive methods. For cooling, it can be configured with either air cooling or water cooling depending on your installation requirements.
What working pressures and displacement capacities does it support?
The system supports working pressures of 7 bar, 8 bar, 10 bar, and 13 bar, corresponding to air displacement outputs of 12.8, 12.4, 9.7, and 8.7 M³/min respectively.
How is the output air quality regarding oil content?
The ETSV-55A is a lubricated screw compressor engineered for high efficiency, achieving a very clean exhaust air quality with an oil content of less than 3 ppm.
What is the standard warranty period for the ETSV-55A?
It comes with a standard warranty of 13 months starting from the delivery date, backed by available engineer overseas services for peace of mind.
Can the voltage and color of the compressor be customized?
Yes, we support extensive OEM/ODM customization. The operating voltage can be configured (220V, 380V, 440V, 460V, 600V, etc., at 50/60Hz), and the housing color (standard red and grey or custom colors) can be modified per request.
